NANO CRYSTALLINE Ribbons/Cores

Nano crystalline cores are Iron Based cores which is a specially developed soft magnetic material . Magnetic properties of iron-based nanocrystalline iron core and glass-mo-alloy core and silicon steel sheet iron core.

  • Properties
  • Product Code
  • Images
  • Graph

Properties of products

Saturated magnetic induction intensity (T)

1.6

Saturated magnetostrictive coefficient

27*106

Curie temperature (°C)

394

Density (g/cm3)

7.25

Crystallization temperature (°C)

478

Resistivity (-cm)

114

Hardness (kg/mm2)

980

Coercive force (A/m)

<3.8



Application area

Precision mutual inductor iron core,high frequency common mode inductor core,leakage protection switch transformer core,ring iron core for small switching power supply transformer



Physical properties of the iron-based amorphous alloy

Saturated magnetic induction intensity BS (T)

1.25

Density (g/cm3)

7.8

Curie temperature (°C)

570

Crystallization temperature (°C)

510

Hvhardness

880

Saturation magnetostriction coefficient

2*10 6



Product Specifications

Specifications

Strip width(mm)

Strip thickness(mm)

5mm and below

±0.1

±0.0026

5~15mm

±0.1

±0.002

15~25mm

±0.1

±0.002

25mm~60mm

±0.1

±0.002

Product code description

Product specification

Ribbon width(mm)

Ribbon thickness(pm)

J1K101030282

3

26

J1K101035282

3.5

26

J1K101045282

4.5

26

J1K101050282

5

26

J1K101060282

6

26

J1K101065282

6.5

26

J1K101080282

8

26

J1K101100282

10

26

J1K101150282

15

26

J1K101200282

20

26

J1K101250282

25

26

J1K101300282

30

26

J1K101350282

35

26

J1K101400282

40

26

J1K101450282

45

26

J1K101500282

50

26

J1K101550282

55

26

J1K101600282

60

26

J1K101650282

65

26

J1K101700282

70

26

J1K101800282

80

26

J1K1011200282

120

26

J1K1011420282

142

26

J1K1011700282

170

26

J1K1012130282

213

26

Product display



Product display

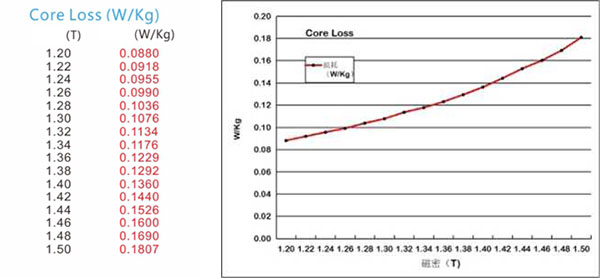

Curve graph for strip (142/170)
